Most warehouse and distribution center managers trust what they can see. The battery is on the charger. The charger shows green. The forklift runs. What more is there to know?
Quite a bit, as it turns out.
Forklift batteries are remarkably good at appearing healthy when they aren’t. Voltage — the most commonly checked metric — is one of the least reliable indicators of a battery’s true condition. It tells you what a battery is doing at a given moment. It tells you almost nothing about what it will do over the next six months, or whether it’s quietly bleeding capacity while your operations team has no idea.
This post explains how lead-acid forklift batteries actually fail, why voltage readings create a false sense of security, what specific gravity reveals that voltage never can, and how a professional battery survey gives operations managers the kind of visibility that prevents expensive surprises.
Why Forklift Batteries Don’t Fail the Way You Expect
Most equipment fails in obvious ways. A tire goes flat. A motor seizes. A conveyor belt tears. Forklift batteries are different. Their decline is slow, gradual, and almost entirely invisible to the naked eye — until the day a battery dies mid-shift and a lift is stranded with a full pallet of product halfway to the rack.
The culprit behind most premature battery failures is sulfation.
When a lead-acid battery discharges, lead sulfate crystals form on the battery’s lead plates — this is a normal part of the electrochemical process. When the battery is properly recharged, those crystals dissolve back into the electrolyte solution. The cycle repeats thousands of times across a battery’s life.
The problem begins when batteries are routinely undercharged, left to sit in a partial state of charge, or improperly watered. Under these conditions, lead sulfate crystals don’t fully dissolve during charging. Instead, they harden on the plates in a process called hard sulfation. Over time, these hardened crystals reduce the battery’s active plate area — shrinking the amount of energy the battery can store and deliver.1
The result is a battery that:
- Accepts a full charge by all outward appearances
- Shows normal resting voltage
- Delivers significantly less runtime than its rated capacity
- Fails sooner and more abruptly than expected
A battery in early-to-moderate sulfation may still show 48 volts at rest. Your charger will still show a completed charge. Your operator will still start a shift. They’ll just run out of power two hours early instead of four — or the battery will fail entirely at a moment that causes maximum disruption.
The Voltage Problem: Why the Most Common Test Isn’t Enough
Voltage is the go-to diagnostic for most operations because it’s easy. You put a meter on the terminals, you get a number, the number looks right, you move on.
Here’s what voltage actually measures: the electrical potential difference between a battery’s positive and negative terminals at a single point in time. When a battery is fully charged and resting, that number will be close to its nominal rating — around 48V for a typical 48-volt forklift battery. When it’s low, the battery needs charging.
What voltage does not measure:
- Capacity. A battery can show 48V at rest and have lost 30% of its original capacity to sulfation. The voltage is technically accurate — for that moment, at rest, with no load applied.
- Cell health. A 48V battery has 24 individual 2V cells. One severely degraded cell can pull the entire battery down under load while leaving resting voltage virtually unaffected.2
- Electrolyte condition. The specific gravity of the electrolyte — the actual chemical state of the sulfuric acid solution — is invisible to a voltage meter. A battery can have a correct voltage and seriously compromised electrolyte.
- Long-term trajectory. Voltage tells you where the battery is right now. It tells you nothing about where it’s headed.
This is why so many warehouses are caught off guard by battery failures. The metrics they’re watching — charger indicators, resting voltage, operator-reported performance — are all trailing indicators. By the time any of them flag a problem, the battery has often been declining for months.
What Specific Gravity Actually Tells You
A hydrometer measures the specific gravity of a battery’s electrolyte — the sulfuric acid and water solution inside each cell. Specific gravity is the ratio of the electrolyte’s density to the density of pure water, and it changes in a highly predictable way as a battery charges and discharges.
In a fully charged, healthy lead-acid battery, specific gravity typically reads between 1.265 and 1.299. As the battery discharges, sulfate ions move from the electrolyte onto the lead plates, reducing the electrolyte’s density — and its specific gravity drops. As the battery recharges, those ions return to the electrolyte, and specific gravity rises again.3
This makes specific gravity a direct window into the actual electrochemical state of each individual cell — something voltage simply cannot provide.
A trained technician taking specific gravity readings across a battery fleet can identify:
Early-stage sulfation. Cells that aren’t returning to full specific gravity after a complete charge cycle are showing the first signs of hard sulfation — even when voltage looks fine.
Stratification. In batteries that aren’t regularly equalized, the electrolyte can stratify — higher-concentration acid sinks to the bottom of the cell while weaker solution floats on top. Specific gravity readings taken from different points in the cell reveal this condition; a voltage reading misses it entirely.4
Dead or dying cells. A single cell with significantly lower specific gravity than the others is a cell that’s failing. In a battery pack, one bad cell degrades the performance of the entire pack. Catching it early via specific gravity means you can evaluate whether the battery is worth reconditioning — before it fails on the floor.
Electrolyte imbalances from improper watering. Overfilling dilutes the electrolyte; underfilling concentrates it. Both show up in specific gravity readings and both cause long-term damage if left unaddressed.
The comparison isn’t subtle. Voltage screening is like checking your blood pressure once and assuming you understand your cardiovascular health. Specific gravity readings — taken cell by cell, across your entire fleet — are closer to a full panel of bloodwork.
The Five Failure Modes a Battery Survey Catches Before They Cost You
A professional industrial battery survey, conducted by a trained technician with the right equipment, gives operations managers a complete diagnostic picture of their fleet. Here’s what it identifies that routine visual checks and voltage readings miss:
1. Capacity fade from sulfation As described above, this is the most common cause of premature battery failure. Specific gravity readings reveal it in early stages — before it begins affecting runtime in ways operators notice. Caught early, affected batteries can often be reconditioned. Caught late, they need replacement.
2. Watering deficiencies Low electrolyte levels — often the result of infrequent or inconsistent watering — expose the lead plates, accelerating both sulfation and corrosion. Technicians conducting a battery survey visually inspect fluid levels and can flag batteries that have been chronically underwatered before permanent plate damage occurs.5
3. Overcharging and thermal damage Batteries that are consistently overcharged run hot, boil off electrolyte, and experience accelerated grid corrosion. A survey documents battery age, charging history indicators, and electrolyte condition in ways that flag overcharging patterns — allowing corrective action on charger settings before the entire fleet is affected.
4. Mismatched batteries and chargers An improperly matched charger — the wrong voltage rating or charge algorithm for the battery chemistry — causes slow, silent damage over hundreds of cycles. A battery survey that documents make, model, serial number, and age can cross-reference this data against the chargers in use to identify mismatches.
5. End-of-life batteries masquerading as functional A battery entering the final phase of its service life often performs adequately under light loads and moderate temperatures — but degrades sharply when pushed hard or when ambient temperatures drop in winter. A survey’s specific gravity data and age documentation let you identify these batteries and plan replacements proactively, rather than scrambling when one fails at the worst possible moment.
What Happens When You Don’t Know
The costs of an undiagnosed battery problem extend well beyond the battery itself.
Unplanned downtime. A battery failure mid-shift means a lift is out of service until a replacement is found, charged, and swapped in. In a high-throughput operation, even 30 minutes of downtime on a single lift has real labor and throughput costs.
Shortened replacement cycles. A fleet that isn’t properly maintained requires replacement on a shorter cycle than it should. Industrial forklift batteries are designed to last 1,500 or more charge cycles — roughly 5 to 7 years under proper conditions. Poor maintenance and undetected cell failures routinely cut that to 3 years or less.6
Safety exposure. A severely degraded or damaged battery can present genuine safety risks — including electrolyte leakage, hydrogen gas buildup from overcharging, and thermal events. Regular condition monitoring is not just an operational best practice; in many operations it’s a component of OSHA and NFPA compliance.7
Cascading charger damage. A failing battery with degraded internal resistance can draw excessive current during charging, stressing the charger. In a fleet where multiple batteries share charging infrastructure, undetected battery failures can begin damaging chargers as well.
None of these are inevitable. They’re all the downstream consequence of not knowing what’s actually happening inside your battery fleet.

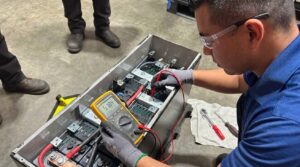

How a Professional Battery Survey Works
A professional industrial battery survey is a structured, on-site evaluation conducted by a qualified technician. It is not a visual walkthrough. Beal Industrial’s battery survey process includes:
- Voltage readings on each battery — establishing a baseline and flagging units that fall outside acceptable parameters
- Specific gravity (spot gravity) readings — taken cell by cell, providing the electrochemical picture that voltage alone cannot
- Make, model, and serial number documentation — creating a complete fleet inventory, often for the first time
- Age and visual inspection notes — identifying physical damage, corrosion, swollen cases, electrolyte staining, and other indicators of abuse or neglect
- A written condition report — summarizing findings across the entire fleet with specific observations on each battery
- Recommendations — for cleaning, equalizing, load testing, in-shop evaluation, or flagging batteries approaching end of life
The result is actionable intelligence. Instead of managing your battery fleet reactively — waiting for something to fail and then responding — you have a complete picture of where every battery stands, which ones need attention now, which ones can wait, and which ones should be in the replacement budget for next year.
For operations managers trying to control costs and reduce unplanned downtime, that visibility is worth considerably more than the survey itself.
How Often Should You Survey?
Battery condition changes continuously. A fleet that looks healthy in January may have two or three batteries in rapid decline by June, depending on usage intensity, charging discipline, and watering consistency.
As a general guideline:
- High-utilization operations (multiple shifts, heavy loads, frequent charging) should survey at least twice a year. Batteries in these environments cycle hard and can decline faster than annual surveys can track.
- Single-shift operations with well-maintained charging and watering programs may find annual surveys sufficient — though twice-yearly remains best practice.
- Any operation that has never had a battery survey should treat the first one as a baseline and schedule the second within six months to establish trend data.
Beal Industrial offers preventative maintenance programs on both annual and semi-annual schedules, with each visit including the same comprehensive voltage and specific gravity readings as a full survey — giving operations managers both a point-in-time snapshot and a longitudinal view of fleet health over time.
The Bottom Line
A forklift battery that looks fine probably is fine. But “probably” is not a maintenance strategy.
Voltage is a useful but fundamentally limited diagnostic. It tells you what a battery is doing right now, under no load, at rest. It tells you nothing about cell health, capacity fade, electrolyte condition, or where that battery will be in three months.
Specific gravity readings tell a different and more complete story. Combined with a thorough visual inspection, accurate fleet documentation, and a written condition report, they give operations managers the kind of visibility that turns battery maintenance from a reactive cost center into a manageable, plannable line item.
Your batteries are probably not lying to you intentionally. They just don’t volunteer bad news. The only way to get the truth is to ask the right questions — and that means the right instruments, the right training, and a technician who knows what to look for.
Schedule a Battery Survey with Beal Industrial
Beal Industrial Products has served Maryland and the Mid-Atlantic region since 1980. We are one of the only companies in the region offering professional on-site battery surveys and preventative maintenance programs — coming directly to your facility to assess your fleet and deliver a complete written condition report.
If you don’t know the true condition of your battery fleet, now is the right time to find out.
Get in touch to schedule your battery survey:
📍 7513 Connelley Dr, Hanover, MD 21076 📞 (410) 768-6200 🌐 bealindustrialproducts.com/contact
Serving Maryland, Virginia, Delaware, Pennsylvania, and the surrounding Mid-Atlantic region.
Frequently Asked Questions
What is a forklift battery survey and what does it include?
A forklift battery survey is a professional on-site inspection of your entire battery fleet conducted by a trained technician. It goes well beyond a quick visual check. A complete survey includes voltage readings and specific gravity (spot gravity) readings on every cell, full documentation of each battery’s make, model, serial number, and age, a visual inspection for physical damage or signs of abuse, and a written condition report with recommendations. The goal is to give operations managers an accurate, data-driven picture of where every battery in their fleet actually stands — not just what it looks like at a glance.
How is a battery survey different from just checking the voltage?
Voltage tells you the electrical potential of a battery at a single moment in time. It does not tell you how much capacity the battery has left, whether individual cells are degrading, or what condition the electrolyte is in. Specific gravity readings — taken cell by cell — reveal the actual electrochemical state of the battery, including early-stage sulfation, cell imbalances, and electrolyte problems that voltage meters completely miss. A battery survey uses both measurements together, alongside physical inspection and documentation, to give you a full diagnostic picture rather than a single data point.
How often should forklift batteries be surveyed?
For most operations, twice a year is best practice. High-utilization facilities — those running multiple shifts or cycling batteries hard — should survey at minimum every six months, since batteries in these environments can decline faster than an annual survey can track. Single-shift operations with consistent maintenance programs may find annual surveys sufficient, though twice-yearly still provides better trend data. If your fleet has never been professionally surveyed, the first step is establishing a baseline; a follow-up survey within six months gives you the comparison data needed to identify which batteries are declining and how quickly.
What is sulfation and why does it matter?
Sulfation is the buildup of hardened lead sulfate crystals on a battery’s lead plates. It occurs when batteries are routinely undercharged, left in a partial state of charge, or improperly watered. In the early stages, a sulfated battery may still show correct voltage and appear to accept a full charge — but its actual capacity is reduced, meaning operators get less runtime than expected. Advanced sulfation is irreversible and forces early battery replacement. Catching it through specific gravity readings in the early stages often allows reconditioning; catching it late means replacement. This is one of the primary reasons a professional survey is more useful than voltage checks alone.
Can a battery that shows full voltage still be failing?
Yes — and this is one of the most common misconceptions in battery fleet management. A battery can show a normal resting voltage of 48V while having lost 20–30% of its original capacity to sulfation. It can also have one or more weak cells that drag performance down under load while leaving the open-circuit voltage essentially unaffected. Voltage is a useful but limited snapshot. It tells you what a battery is doing right now, at rest. Specific gravity readings and a proper inspection tell you what the battery is actually capable of — and where it’s headed.
What causes forklift batteries to fail prematurely?
The most common causes of premature failure are sulfation from improper charging or partial states of charge, inadequate watering (both underwatering and overwatering damage the plates and electrolyte), overcharging that boils off electrolyte and causes thermal damage, mismatched chargers that apply the wrong charge profile for the battery chemistry, and lack of regular maintenance that allows small problems to compound over time. Most of these causes are detectable early through professional battery surveys — which is why proactive monitoring is significantly less expensive than reactive replacement.
Does Beal Industrial come to our facility or do we bring batteries to you?
Beal Industrial comes to you. Our technicians travel to your facility to conduct battery surveys, preventative maintenance visits, and watering service on-site. You don’t need to pull batteries from service, arrange transportation, or interrupt your operations beyond the time required for the inspection itself. We serve businesses throughout Maryland, Virginia, Delaware, Pennsylvania, and the broader Mid-Atlantic region.
How do I get started with a battery survey from Beal Industrial?
Contact us by phone at (410) 768-6200 or through our website at bealindustrialproducts.com/contact. We’ll gather basic information about your fleet size and location, schedule a visit at a time that works for your operation, and deliver a complete written condition report following the survey. There’s no commitment required beyond the survey itself — and the information you get back is immediately actionable regardless of what direction you take from there.
Sources
- Battery Council International. Motive Power Battery Maintenance Manual. BCI, 2019. Covers sulfation mechanisms and their effect on capacity and plate integrity in lead-acid traction batteries. ↩
- Linden, David, and Thomas B. Reddy. Handbook of Batteries, 4th ed. McGraw-Hill, 2011. Chapter 24 covers lead-acid battery diagnostics, including the limitations of open-circuit voltage as a state-of-health indicator. ↩
- Peukert, W. Referenced in: Berndt, Dirk. Maintenance-Free Batteries: Lead-Acid, Nickel/Cadmium, Nickel/Metal Hydride. Research Studies Press, 1997. Specific gravity as a primary indicator of electrolyte charge state is discussed in detail. ↩
- EUROBAT (Association of European Automotive and Industrial Battery Manufacturers). Guide to Lead-Acid Stationary Batteries, 2nd ed. EUROBAT, 2015. Stratification and its effects on cell performance and specific gravity measurement accuracy. ↩
- Ruetschi, Paul. “Aging mechanisms and service life of lead–acid batteries.” Journal of Power Sources 127, no. 1–2 (2004): 33–44. https://doi.org/10.1016/j.jpowsour.2003.09.052. Documents the role of water loss and plate exposure in accelerating capacity loss. ↩
- Electric Power Research Institute (EPRI). Battery Life and Reliability. EPRI Technical Report TR-100248. EPRI, 1992. Establishes baseline service life expectations for industrial lead-acid batteries under varying maintenance conditions. ↩
- Occupational Safety and Health Administration (OSHA). Powered Industrial Trucks: Battery Charging and Changing. 29 CFR 1910.178(g). U.S. Department of Labor. https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.178. Requirements for battery charging areas, ventilation, and handling procedures. ↩
